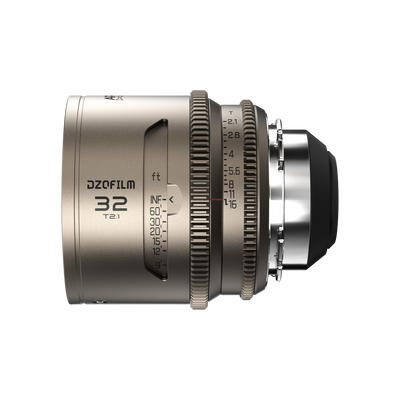

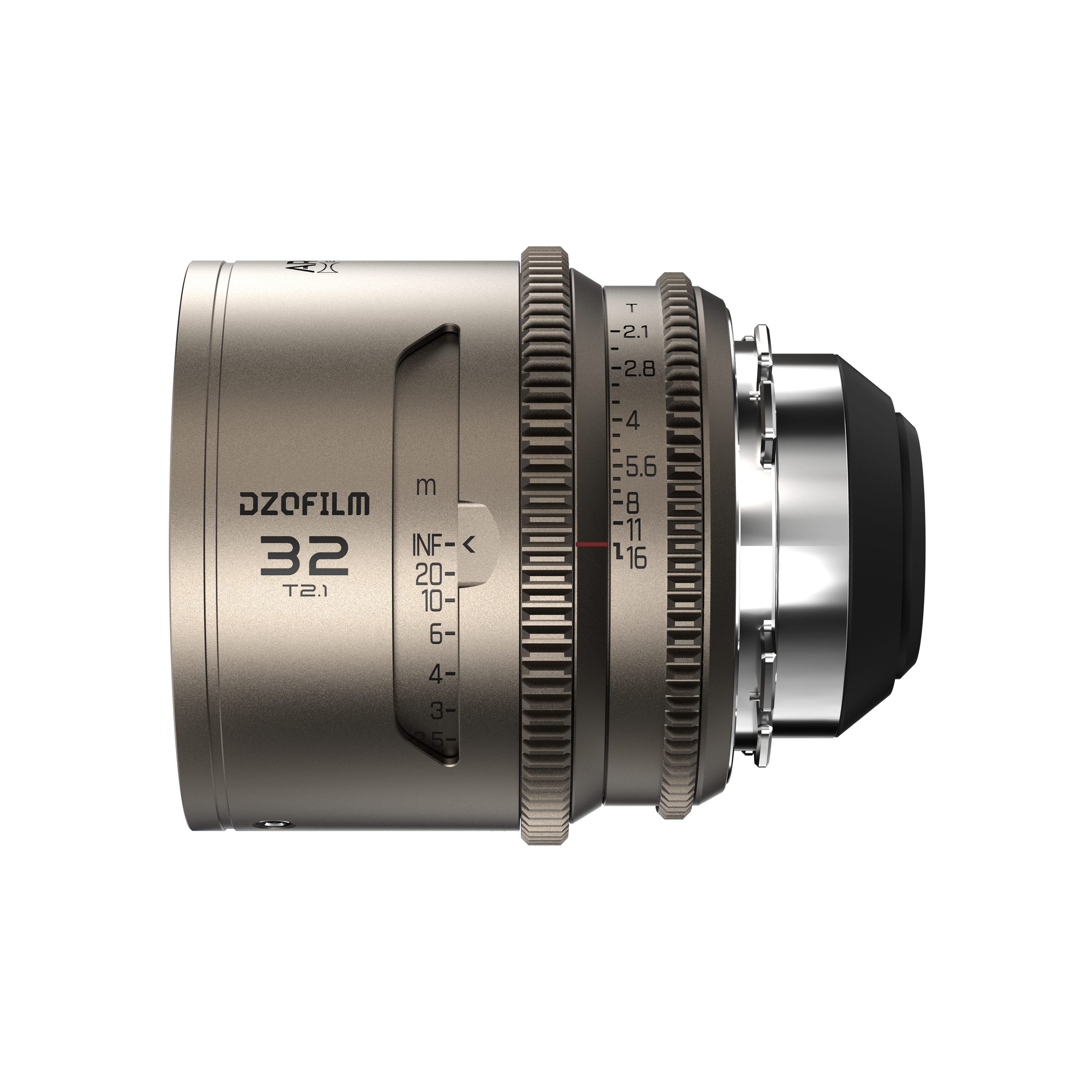

Arcana 1.5X Anamorphic T2.1 Full frame
Purchase any single Arcana lens or set during pre-sale,and get a USD 269 Octopus Adapter (PL-E/L/RF) FREE with your order.
Pairs well with
The first batch is limited to 100 sets worldwide and is scheduled to ship on April 25.
7-day risk-free trial
One-year Warranty
Quality Guarantee
For international orders, customers may need to pay tariffs/import taxes per the destination’s customs rules. These charges, set by local customs, are excluded from product and shipping costs.
Arcana 1.5X Anamorphic T2.1 Full frame

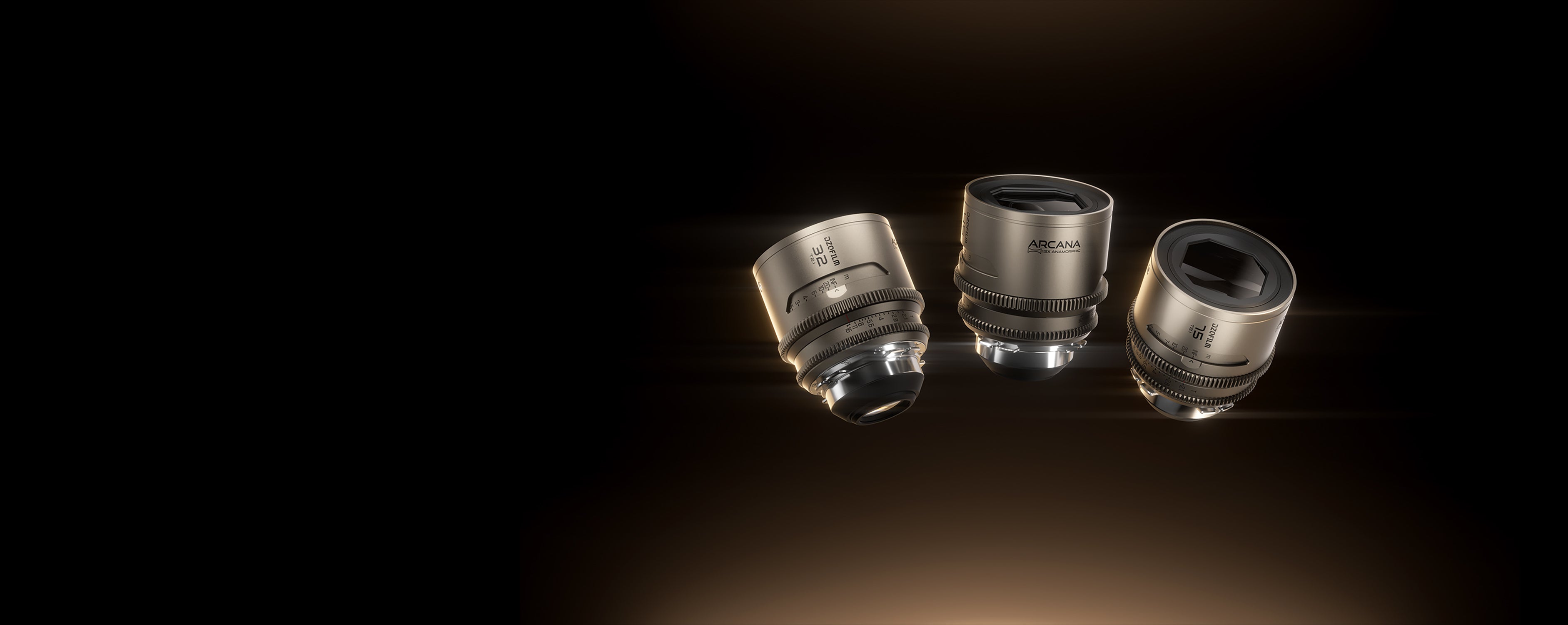

Arcana Anamorphic
The mysterious world of "Arcana" offers a brand new way to look at anamorphic lenses. The DZOFILM ARCANA series perfectly balances wide cinematic images with a small, lightweight design. By mixing great optics with smart engineering, these lenses help you discover new ways to tell your story.
Key Selling Points
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
INSPIRETHE FUTU

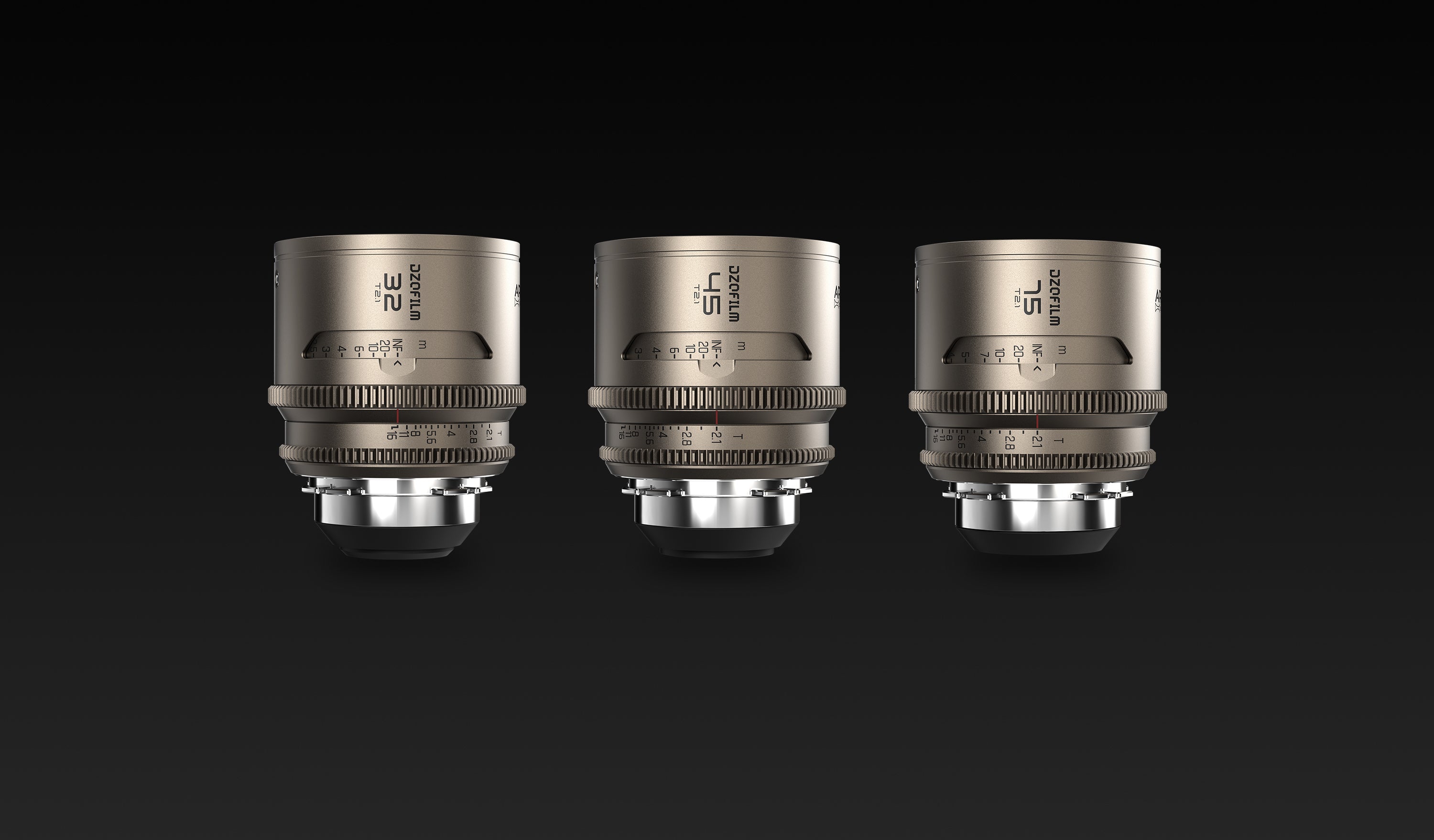

| Focal Length | 32mm | 45mm | 75mm |
|---|---|---|---|
| Colour | Titanium | Titanium | Titanium |
| Mount | PL | PL | PL |
| Aperture | T2.1-16 | T2.1-16 | T2.1-16 |
| Image Circle | ø43.3mm (36mm × 24mm) | ø43.3mm (36mm × 24mm) | ø43.3mm (36mm × 24mm) |
| Construction of Optics | 15 Elements in 13 Groups | 15 Elements in 13 Groups | 15 Elements in 11 Groups |
| Angle of View (horizontal, vertical) | 97.0°(H) × 41.4°(V) | 70.0°(H) × 30.2°(V) | 42.6°(H) × 18.8°(V) |
| Close Focus (from sensor plane) | 0.48m / 1ft 7in | 0.53m / 1ft 9in | 0.78m / 2ft 7in |
| Max. Mag. Ratio | 0.092 | 0.111 | 0.116 |
| Squeeze Factor | 1.5X | 1.5X | 1.5X |
| Iris Control | Manual (52.26°) | Manual (51.96°) | Manual (59.53°) |
| Focus Control | Manual 270° | Manual 270° | Manual 270° |
| Front Dia. | ø80 | ø80 | ø80 |
| Length (from lens front to flange plane) | 80mm | 80mm | 80mm |
| Iris Blade | 14 | 14 | 14 |
| Filter Size | M77 | M77 | M77 |
| Gear Pitch | 0.8mod | 0.8mod | 0.8mod |
| Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Weight (Product) | 709g | 695g | 709g |
FAQs
Please read our FAQs page to find out more.
Which cameras support 1.5× de-squeeze display?
Cinema cameras with built-in displays, such as the Blackmagic URSA series, typically support 1.5× de-squeeze by default. For mirrorless cameras like the Sony FX series, some models may require the latest firmware update or the use of an external monitor to achieve de-squeezed preview. We recommend checking with your camera manufacturer to confirm whether your specific model supports 1.5× display mode.
Can the mount of the Arcana be changed by the user?
Due to structural limitations, the Arcana is currently available only in a PL mount version. To adapt it to other camera systems, you can use the DZOFilm Octopus adapter series or other PL mount adapters.
Does the Arcana have electronic features? Does it support Cooke /i Technology?
No. The Arcana is a fully manual optical lens design with no electronic components. Therefore, it does not support Cooke /i protocol, electronic aperture, or autofocus.
